Product Description:

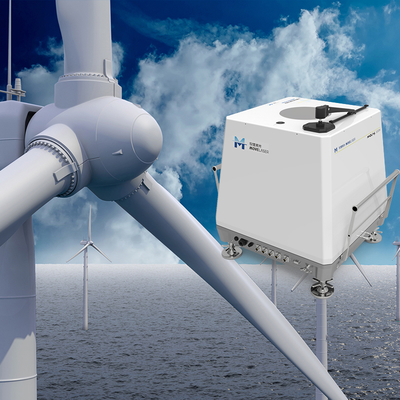

Molas B30oM: A Specialized Wind Lidar for Offshore Wind Energy Measurement
The Molas B30oM is a sophisticated wind lidar system specifically designed for offshore wind energy measurement. Building upon the key features of the ground-based wind lidar, Molas B300, this instrument has been tailored to excel in the challenging marine environment.
One of its notable features is the incorporation of a high-precision inertial measurement unit and an attitude compensation algorithm. These advanced components enable the wind lidar to operate effectively on non-fixed platforms such as buoys and ships, facilitating accurate and real-time wind speed measurements.
Features:
Low Cost:
Whether used with monopile platforms or buoys, the price is significantly lower than the construction cost of offshore wind towers.
Large Range:
20~350m, with 12 or 24 custom height levels available to choose from.
High Precision:
Throughout the full life cycle, accuracy is up to 0.1m/s and 1°.
Time-Saving and Efficient:
Short project construction period leads to valuable time and cost savings.
Flexible Configuration:
Utilize flexible wireless connection for remote configuration delivery and data transmission.
Data Security:
Implement data encryption to ensure no risk of leakage.
Non-Contact Measurement:
Convenient and fast method, leading the industry in efficiency.
Technical Parameters:
|
Protection Class
|
IP68(whole Machine)
|
|
Wind Speed Accuracy
|
0.1m/s
|
|
Wind Direction Range
|
0~360°
|
|
Weight
|
≤50kg
|
|
Temperature Range
|
-40°C~60℃
|
|
Powered By
|
24V±5%DC,100~230VAC
|
|
Wind Speed Range
|
0~75m/s
|
|
Humidity Range
|
0% To 100%
|
|
Size
|
554'430*576mm³(including Handle)
|
|
Power
|
60W
|
Applications:
Movelaser's Offshore Wind LIDAR Measurement Device, model number MolasB300M, is a cutting-edge solution designed to meet the demands of offshore wind energy projects. With its origins in China, this high-quality product offers unparalleled performance in wind speed measurement, making it an essential tool for a variety of applications.
The MolasB300M is a versatile device suitable for a wide range of product application occasions and scenarios. Its compact design and lightweight construction, weighing at most 50kg, make it ideal for offshore installations where space and weight are at a premium. The device's wind speed range of 0~75m/s ensures accurate and reliable measurements even in challenging marine environments.
One of the key features of the MolasB300M is its exceptional wind direction accuracy of 1°, providing valuable data for wind resource assessment and site suitability analysis. The device is powered by a flexible 24V±5%DC,100~230VAC power supply, allowing for seamless integration into existing power systems.
With a sampling rate of 1Hz, the MolasB300M delivers precise and real-time wind data, essential for optimizing the performance of offshore wind farms. The device's rugged construction and Protection Class ensure reliable operation in harsh offshore conditions, making it the go-to choice for wind energy developers.
Whether it's for wind resource assessment, turbine positioning, or operational monitoring, the MolasB300M offers unmatched performance and reliability. The product packaging details include a sturdy flight case for safe transportation and storage, with a minimum order quantity of 1 set and a customizable delivery time to meet project deadlines.
