Product Description:

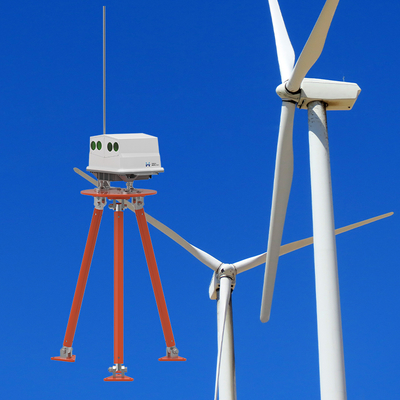

The Wind Turbine Lidar is an advanced Wind Energy Lidar System designed for precise Lidar measurements in the field of onshore wind energy. With exceptional capabilities and features, this product is a valuable asset for wind energy professionals seeking accurate and reliable data for wind resource assessment and wind farm optimization.
One of the key attributes of the Wind Turbine Lidar is its wide Wind Direction Range of -180° to 180°, providing comprehensive coverage of wind directions for thorough analysis and evaluation. This extensive range ensures that no critical wind data is missed, allowing users to make informed decisions based on a complete understanding of wind patterns and behavior.
For durability and performance in challenging wind conditions, the Wind Turbine Lidar is designed to withstand Survival Wind Speeds of up to 70m/s. This high resilience ensures that the device can continue operating effectively even in harsh weather conditions, providing reliable data collection without interruptions.
The Weight of the Optical Head of the Wind Turbine Lidar is kept to a minimum, with a maximum weight of ≤23kg. This lightweight design enhances portability and ease of installation, allowing users to deploy the Lidar system efficiently in various locations for versatile wind measurement applications.
Operating at a Frequency of 4Hz, the Wind Turbine Lidar delivers high-speed data acquisition for real-time wind measurements. This rapid data collection rate enables users to capture detailed wind information with precision and accuracy, ensuring that critical wind parameters are captured effectively for analysis and decision-making.
The Wind Turbine Lidar is equipped with a Maximum Pass Size of 500mm x 500mm, enabling the device to capture wind data from a large area with a single pass. This wide coverage area enhances the efficiency of data collection, allowing users to gather comprehensive wind data quickly and effectively, saving time and resources in wind measurement campaigns.
Features:
-
Product Name: Wind Turbine Lidar
-
Wind Direction Accuracy: ±0.5°
-
Wind Direction Range: -180°~180°
-
Frequency: 4Hz
-
Range: 50m~750m/NL750
-
Wind Speed Range: -50m/s~50m/s
Technical Parameters:
|
Lidar measurement
|
Wind Turbine Lidar
|
|
Measurement Layer
|
10
|
|
Maximum Pass Size
|
500mm x 500mm
|
|
Range
|
50m - 750m / NL750
|
|
Survival Wind Speed
|
70m/s
|
|
Wind Speed Accuracy
|
0.1m/s
|
|
IP(Optical Head)
|
IP66
|
|
Temperature Range
|
-40°C - 60°C
|
|
Wind Direction Range
|
-180° to 180°
|
|
Wind Direction Accuracy
|
±0.5°
|
|
Acceleration Range
|
-0.5g to 0.5g
|
Applications:
Support and Services:
The Wind Turbine Lidar product offers comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is committed to providing timely assistance with product inquiries, troubleshooting, and maintenance services.
